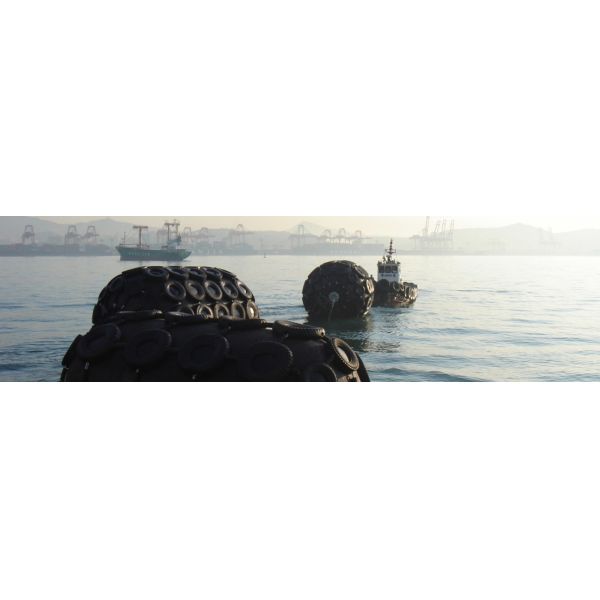

50kPa Pressure Yokohama Baby Fender Customized for Marine Transportation
Description
The Pneumatic Rubber Fender is designed to withstand extreme pressure and rough conditions, making it ideal for use in harsh marine environments. The fender has a service life of 10~15 years, which makes it a cost-effective solution for long-term use. It is also resistant to abrasion, corrosion, and UV rays, ensuring that it remains in excellent condition even after years of use.
The Pneumatic Rubber Fender is available in two pressure ratings of 50kPa and 80kPa, making it suitable for use on different types of vessels. The fender provides excellent protection against impact and collision, ensuring the safety of the vessel and its crew. It is easy to install and maintain, making it a popular choice among marine operators worldwide.
The Pneumatic Rubber Fender is also known as a Pneumatic Marine Fender or an Inflatable Rubber Fender. It is widely used in various marine applications, including ship-to-ship transfer, ship-to-quay transfer, and offshore platforms. The fender is also suitable for use in ports, harbors, and other marine facilities.
Overall, the Pneumatic Rubber Fender is an excellent choice for marine operators looking for a reliable, durable, and cost-effective solution for protecting their vessels. Its customizable size, pressure rating, and color make it a versatile option for different marine applications.
| Place of Origin | China |
| Brand Name | Pneumatic Rubber Fender |
| Model Number | HM-PRF84 |
| Material | Natural Rubber |
| Color | Black |
| Application | In ports with extreme tidal variations Ship-to-ship lightering operations Oil Gas (typically FSRU) Temporary berthing |
| Feature | Heat Resistance |
| Sample | Usually free |
| Production Method | Moulding |
| Temperature | -40℃~300℃ |
| Packing | Pallets |
| Lead time | 7-14 days |
Diameter x Length
[mm] | 50kPa
Performance Data | 80kPa
Performance Data |
Hull Pressure
at GEA
/ kN / m2 | Reaction Force
/ kN | Energy Absorption
/ kNm | Hull Pressure
at GEA
/ kN / m2 | Reaction Force
/ kN | Energy Absorption
/ kNm |
| 1000 x 1500 | 122 | 182 | 32 | 160 | 239 | 45 |
| 1000 x 2000 | 132 | 257 | 45 | 174 | 338 | 63 |
| 1200 x 2000 | 126 | 297 | 63 | 166 | 390 | 88 |
| 1350 x 2500 | 130 | 427 | 102 | 170 | 561 | 142 |
| 1500 x 3000 | 153 | 579 | 153 | 174 | 761 | 214 |
| 1700 x 3000 | 128 | 639 | 191 | 168 | 840 | 267 |
| 2000 x 3500 | 128 | 875 | 308 | 168 | 1150 | 430 |
| 2500 x 4000 | 137 | 1381 | 663 | 180 | 1815 | 925 |
| 2500 x 5500 | 148 | 2019 | 943 | 195 | 2653 | 1317 |
| 3300 x 4500 | 130 | 1884 | 1175 | 171 | 2476 | 1640 |
| 3300 x 6500 | 146 | 3015 | 1814 | 191 | 3961 | 2532 |
| 3300 x 10600 | 158 | 5257 | 3067 | 208 | 6907 | 4281 |
| 4500 x 9000 | 146 | 5747 | 4752 | 192 | 7551 | 6633 |
| * Other size can be produced follow client's requirements. |
Features
Adaptable Shape
The spherical design allows for smooth rolling action upon contact, further minimizing vessel movement and enhancing stability.
Safety Features
Built-in safety mechanisms prevent over-inflation and ensure fenders perform reliably under varying conditions.
Eco-Friendly Materials
Many manufacturers use materials that are environmentally friendly and non-toxic, minimizing environmental impact.
Customizable Specifications
Fenders can be tailored to meet specific engineering and operational requirements, providing bespoke solutions for different clients.
Applications
● Emergency Response and Salvage Operations
● Marine Transportation and Logistics
● Rooftop and Floating Platform Applications
● Prevailing Winds and Tidal Estuaries
Advantages
Comprehensive Support Services
Offering installation, maintenance, and repair guidance to help clients maximize product lifespan.
Strong Brand Reputation
Recognized and respected brand within the marine industry for quality and reliability.
Innovative Designs
Commitment to continuously improving product design for enhanced performance and user satisfaction.
Durability in Harsh Environments
Proven capability to withstand extreme marine conditions, including UV exposure and saltwater.
FAQ
1. What is a pneumatic rubber fender?
Pneumatic rubber fenders are buoyant fenders filled with compressed air, designed to absorb the kinetic energy of a vessel during berthing and mooring operations. They are typically cylindrical in shape and can be used in both ship-to-ship and ship to dock applications.
2. What are the main advantages of pneumatic rubber fenders?
High Energy Absorption: They can absorb substantial kinetic energy, providing good protection to both the vessel and the dock.
Low Reaction Force: Compared to solid fenders, pneumatic fenders exert lower reaction forces on the berthing ship, minimizing damage.
Lightweight and Easy to Handle: Their buoyant nature makes them easy to install, move, and handle during operations.
Versatile Usage: Suitable for various marine operations, including ship-to-ship transfers and assisting tanker berthing.
Durable Design: Made from high-quality rubber and designed to withstand harsh marine conditions, they have a long service life.
Cost Effective: Their durability and performance can lead to lower long-term costs in maintenance and repairs.
3. How do pneumatic rubber fenders work?
The fender compresses upon impact, with the air inside absorbing the energy generated by the colliding vessels. The air cushion effectively mitigates the force of impact, reducing the risk of damage to both the vessels and the docking facilities.
